• Capacitati disponibile de la 2.8 tone pana la 5,6 tone.
• Se potrivesc cu chingi cu latime de 50 pana la 100 mm.
• Otel aliat forjat
• Carcasa de plasic solida protejaza chinga la ochi cat si fixeaza chinga pe bobina
• Surubul cu cap cilindric este din otel aliat grad 8 conform ASTM A574. Doar cu filet UNC.
• Factor de proiectare: 5:1
• Testate individual cu o sarcina de proba de 2-1/2 ori Sarcina Limita de Lucru (W.L.L.)
• Proiectate pentru a fi utilizate cu Tip III (Ochi & Ochi), clasa 7, chinga in 2 straturi & chinga circulara sintetica. De asemenea se pot monta pe chingi circulare cu un singur strat.
• Sunt ECHIPATE RFID.

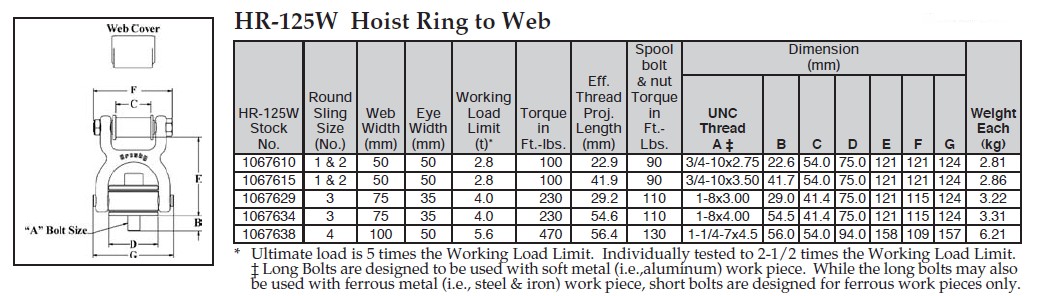

DATE TEHNICE

• Available in capacities from 2.8 to 5.6t.
• Fits webbing sizes 50 to 100mm.HR-125W Forged Alloy Steel
• Durable plastic cover protects the sling at the eye as well as keeps the sling positioned correctly on the spool.
• Bolt specification is a Grade 8 Alloy socket head cap screw to ASTM A574. All threads are UNC.
• Design Factor of 5 to 1.
• Individually Proof Tested to 2-1/2 times the Working Load Limit.
• Designed for use with Type III (Eye & Eye), class 7, 2 ply webbing & synthetic round slings. Also accommodates single ply endless slings.
• All sizes are RFID EQUIPPED.
